Description

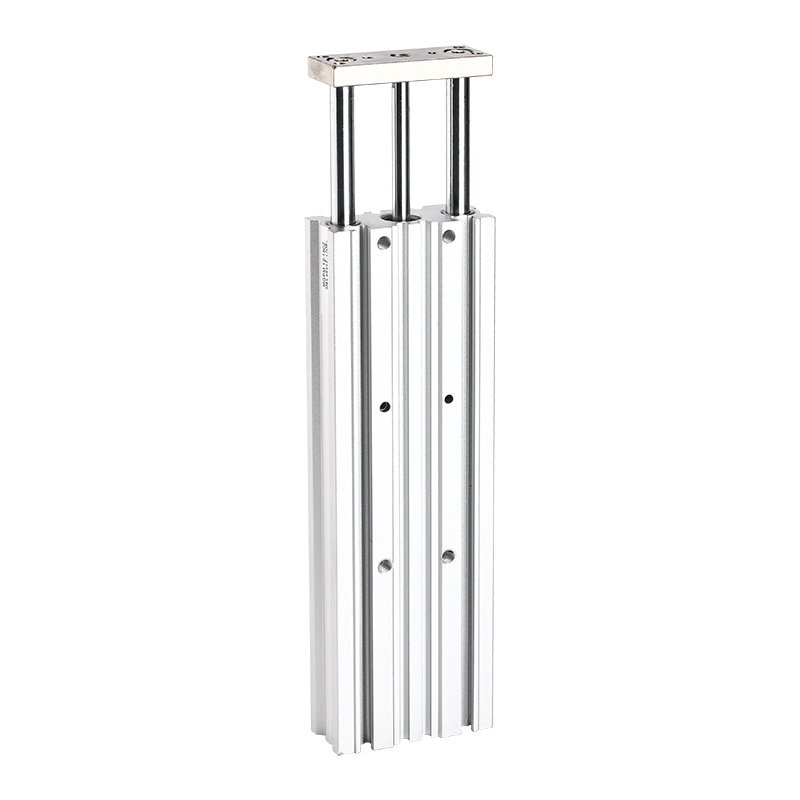

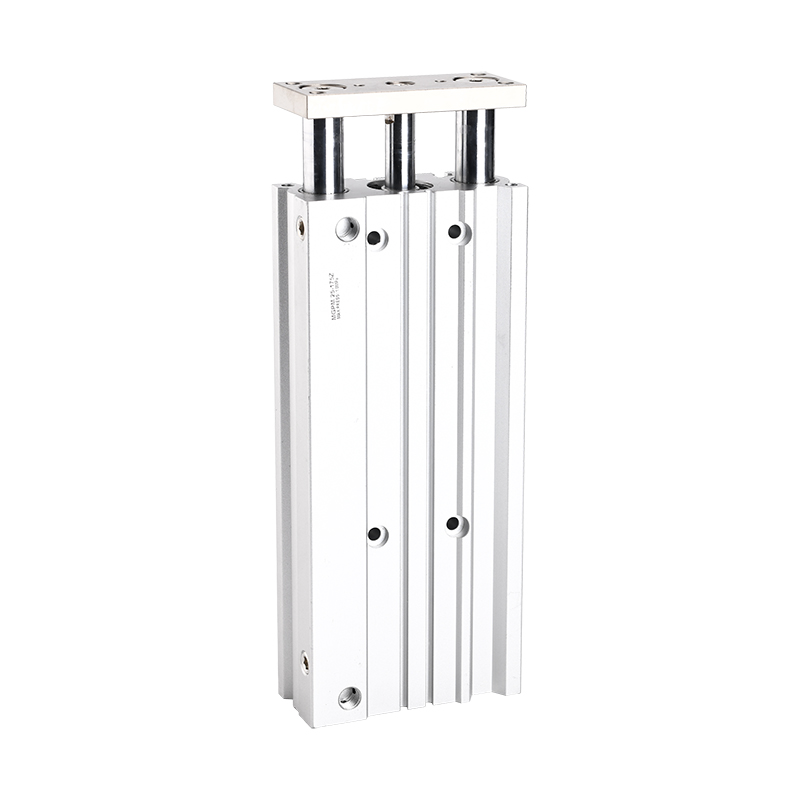

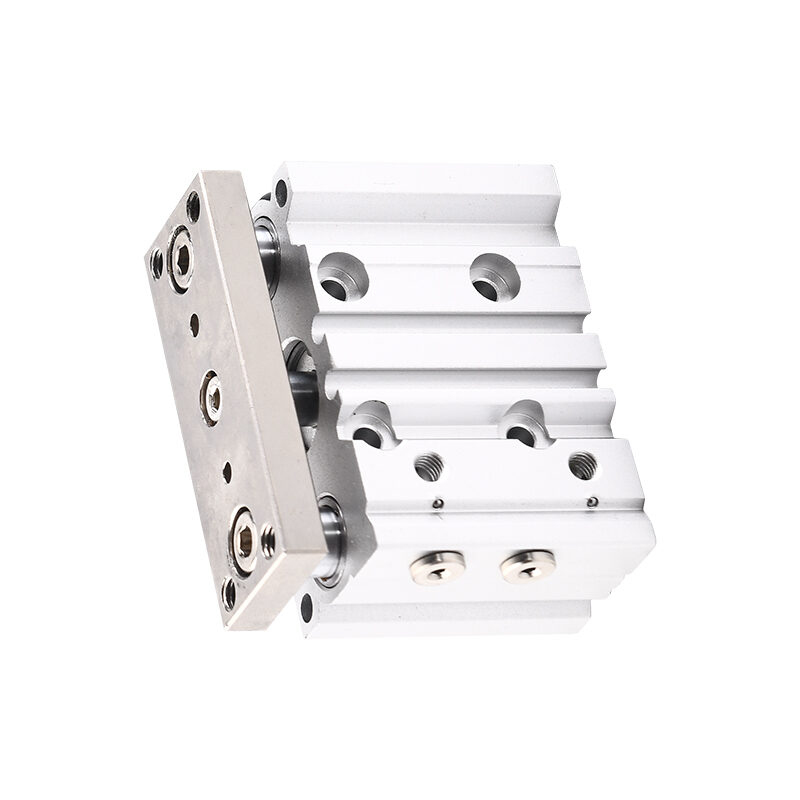

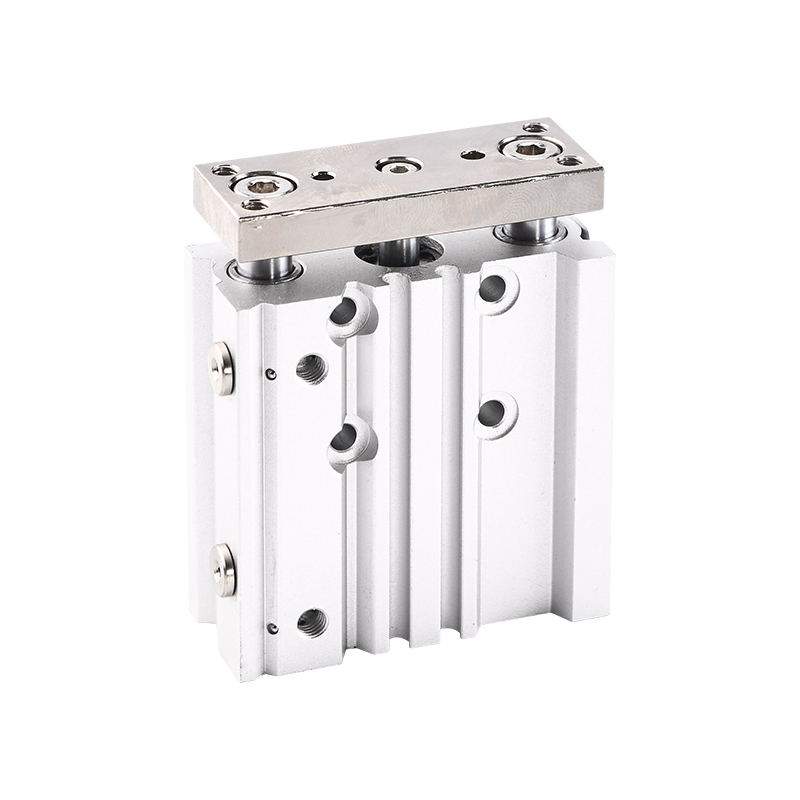

Operation Principle: The MGPM Series pneumatic cylinder operates by utilizing compressed air to actuate a piston inside the cylinder body. The piston features three rods for added support and even force distribution. This design provides superior stability and allows for handling higher side loads and greater accuracy during motion.
Working Pressure: 1.5 to 8.5 bar
Size Range: Bore sizes from 12 mm to 100 mm.
Stroke Length: Customizable stroke length from 1 mm to 1000 mm.
Body Material: Aluminum , Stainless steel
Piston Rod Material: Steel (Hard Chrome Plated)
Seal Material: NBR (Nitrile Rubber), FKM (Viton), PTFE (for high-temperature applications)
Working Fluid: Compressed air, filtered and lubricated or dry air
Max Speed: Up to 1 m/s (depending on bore size, stroke, and pressure)
Position Sensing: Available with integrated sensors for position detection (e.g., reed switches, inductive sensors)
