Pneumatic Directional Control Valves

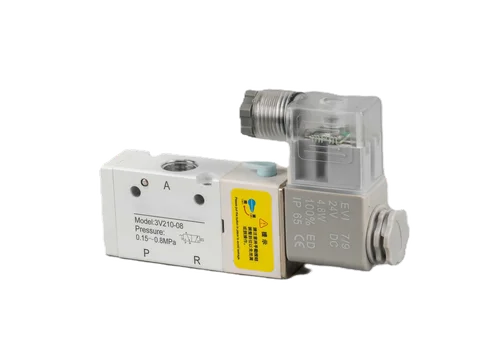

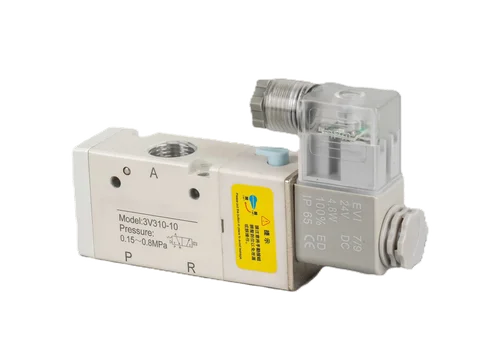

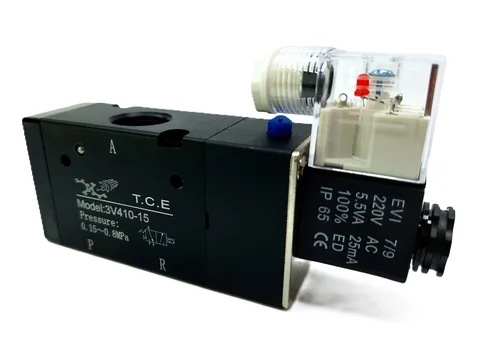

3/2 way solenoid valve 3V Series
Standard Low Power Solenoid Valve Single Coil
Photograph labels are catalog references, not verified specifications for each model.
Enquire about this selectionFamily information
Catalog information describes product families. Dimensions, materials, pressure limits and compatibility must be confirmed for your selected model and operating conditions.
| Specification | Source value |
|---|---|
| Position | 3/2 way |
| Available threads | 1/8", 1/4", 3/8" and 1/2" |
| Voltage Range | 12 VDC, 24 VDC, 24 VAC, 110 VAC and 220 VAC |
| Working Fluid | 40 Micron Filtered Air |
| Working Pressure | 1.5 - 9 bar |
| Operation Temperature | 5-65 C |
| Power Consumption AC | 2.5VA DC: 2.5W |
| Protection Class | IP65 |
| Response Time | 5 Cycle / Sec |
Full source description
Standard Low Power Solenoid Valve Single Coil
Position: 3/2 way
Available threads : 1/8", 1/4", 3/8" and 1/2"
Voltage Range : 12 VDC, 24 VDC, 24 VAC, 110 VAC and 220 VAC
Working Fluid : 40 Micron Filtered Air
Working Pressure : 1.5 - 9 bar
Operation Temperature : 5-65 C
Power Consumption AC: 2.5VA DC: 2.5W
Protection Class : IP65
Response Time : 5 Cycle / Sec
